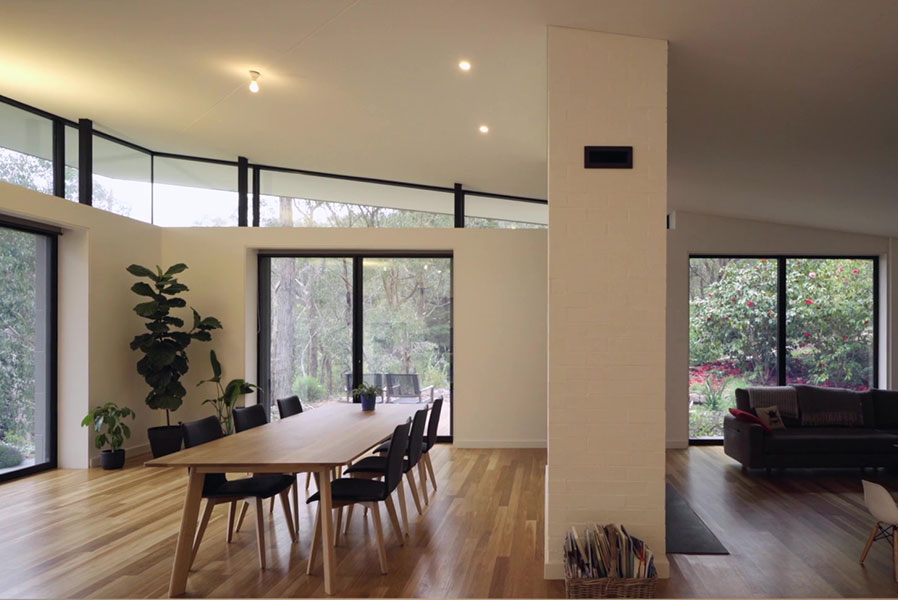

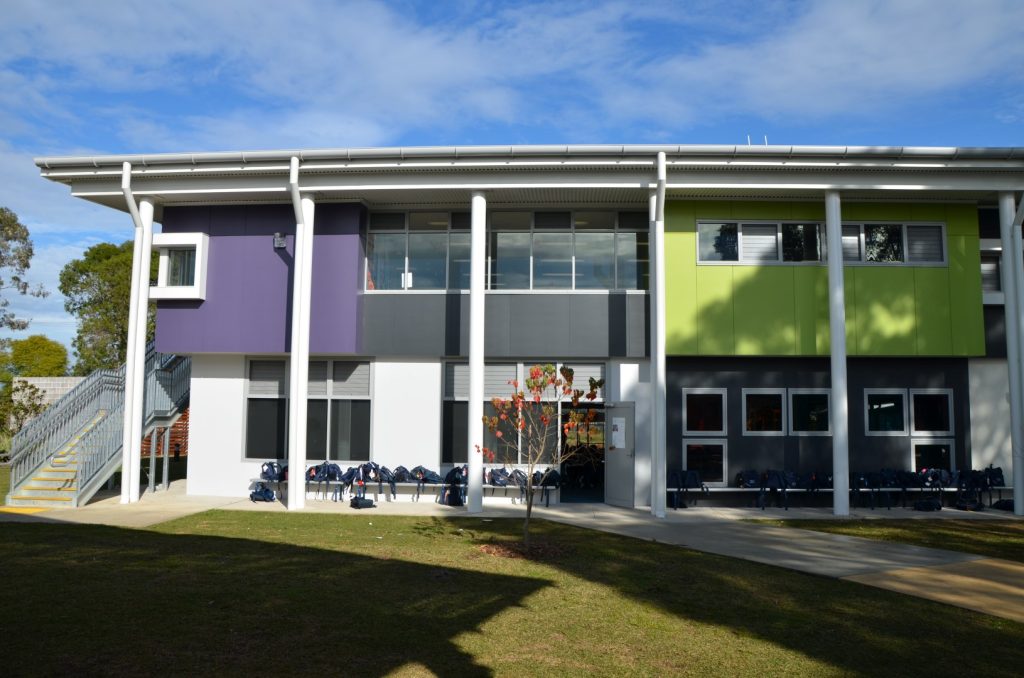

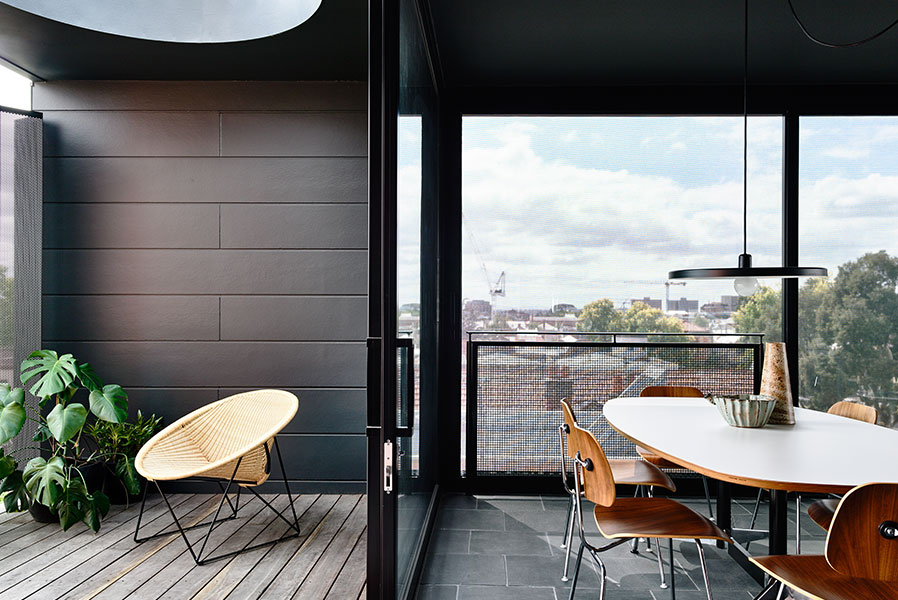

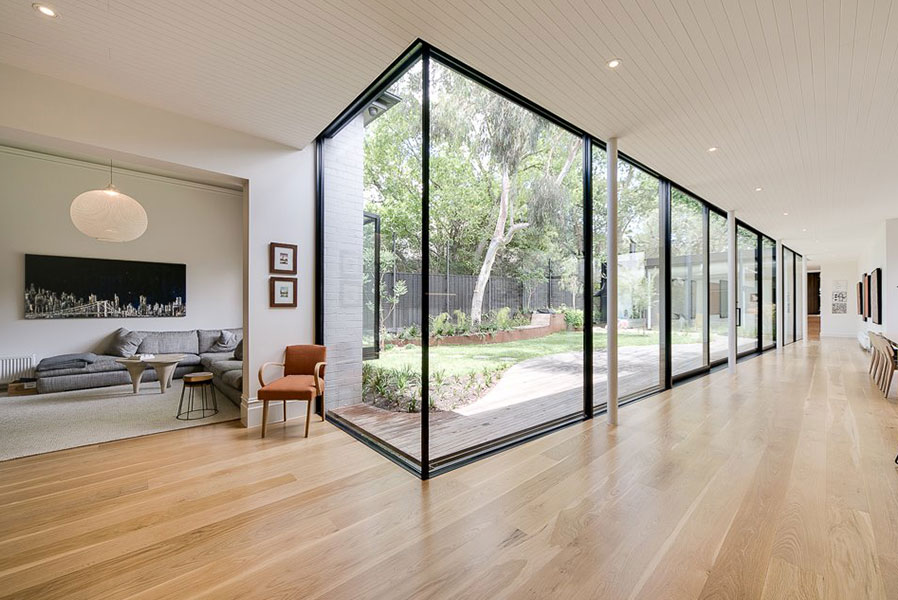

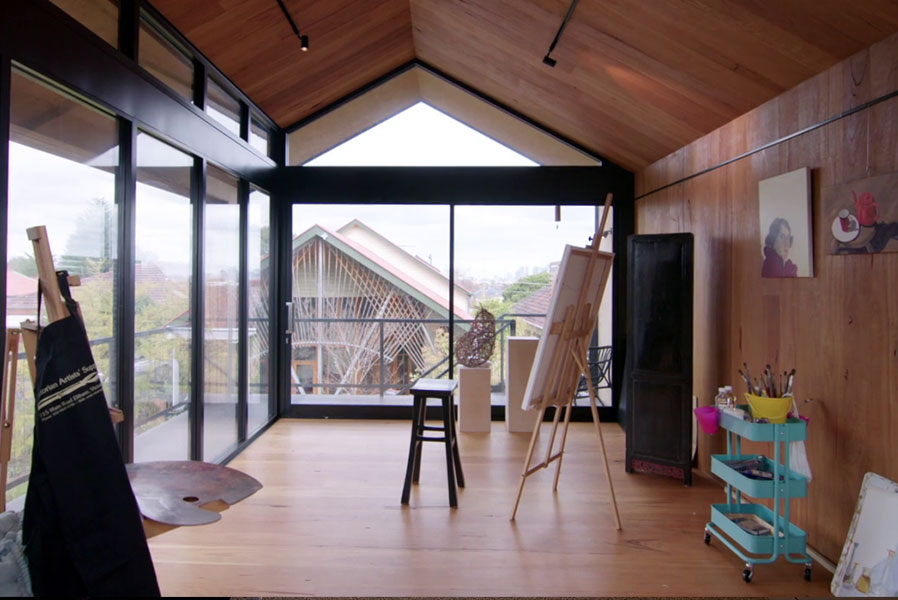

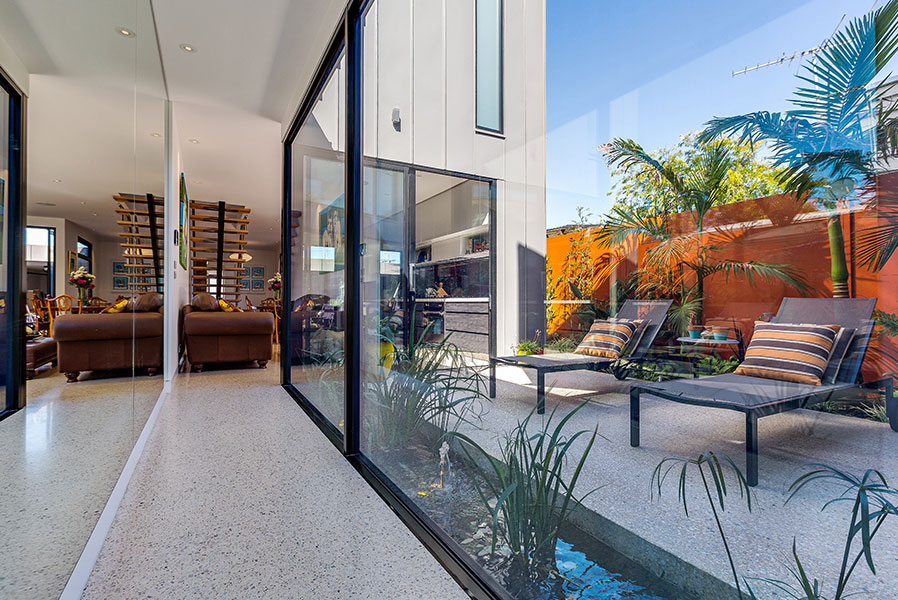

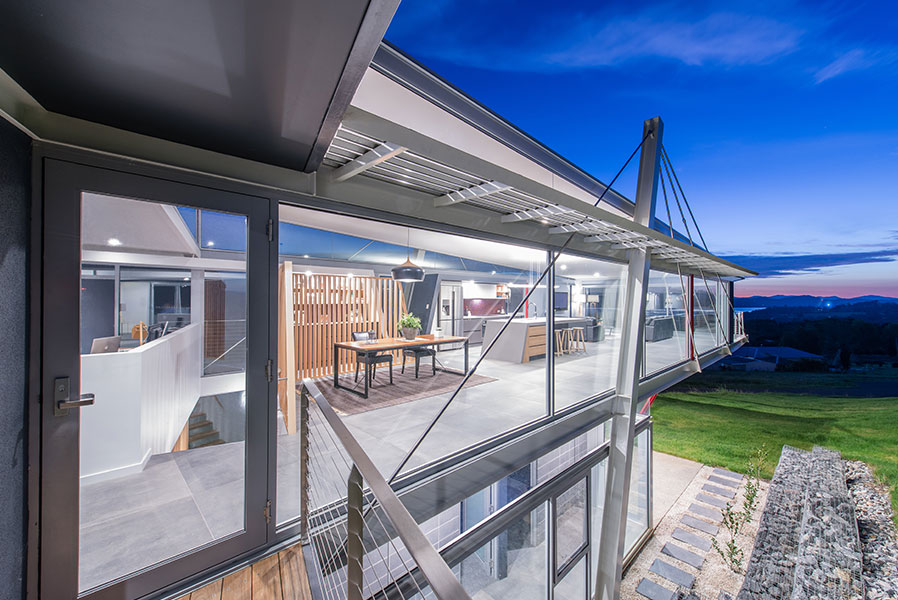

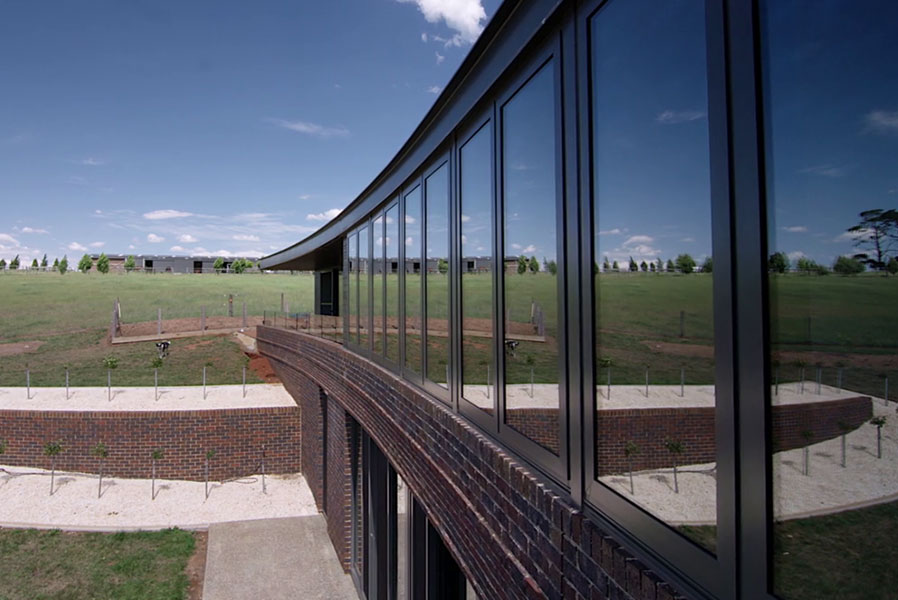

Series 424 CentreGLAZE™ shopfront framing measures 102mm x 50mm and has been designed specifically to accept 24mm Insulating Glass Units (IGUs).

  • The 28mm deep glazing pocket is designed to accept thick heavy IGUs and allows glass to be installed easily with room to spare (catering for glass manufacturing tolerance).
  • This deep glazing pocket provides a 12mm bite as required by the IGU manufacturers and ensures compliance with glass warranties.
  • Reinforced tall glazing bead at sill tolerate high wind loads.
  • True captive glazing wedge allows reglazing from inside – ideal in elevated applications.
  • The captive wedge also offers increased security.
  • Glazing wedges are recessed into the framing for a clean aesthetic.
  • Wide range of sub-sills to cover most installations, including sub-sills with integrated nailing fin ideal for residential installations.
  • Sub-head and two piece sub-jambs.
  • Numerous door thresholds including weather resisting thresholds for external and internal swing doors.
  • Designed for use with Series 50, 51 and 52 commercial doors.
  • Compatible with Commercial and Architectural Series systems.
  • Accepts awning and Casement sashes.
