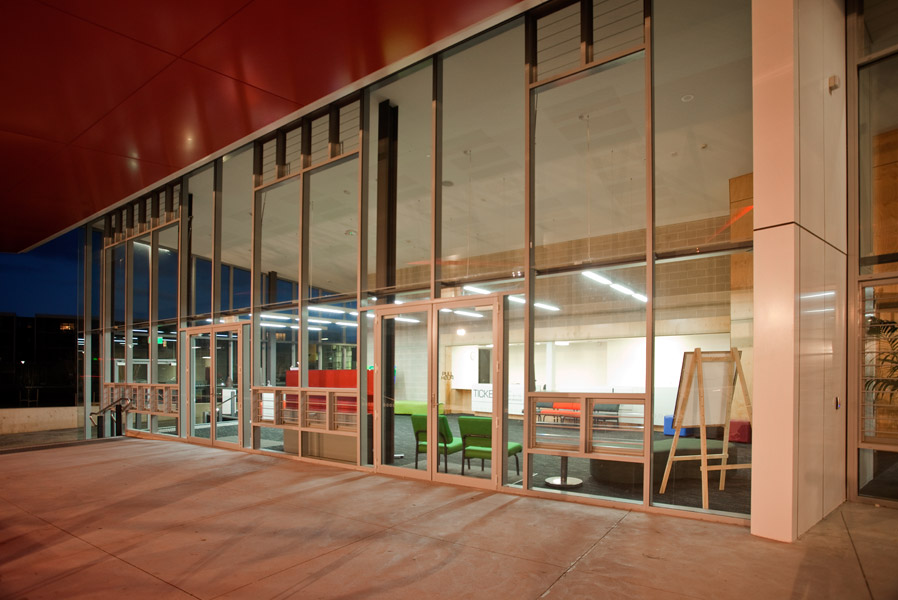

Series 624 – Double Glazed Centre Glazed 150mm Framing
Frame and glazing pocket designed to accept 24mm insulating glass units (IGUs) with required 12mm bite, plus another 4mm to cater for glass production and installation tolerances.
- Compatible with a large range of other Elevate™ framing systems, including sliding doors.
- Snap together and interlocking expansion mullions.
- Matching 50mm thick hinged, pivot or sliding door; each designed to accept 24mm thick double glazing and a large variety of industry standard hardware.
- Two fully beaded midrail sizes to choose from (125mm and 200mm deep).
- Concealed overhead transom also designed to accept 24mm IGUs.
- We can insert awning sashes into the framing – if required. These sashes will also accept 24mm IGUs.
